AC Switchgear (Indoor)
Quantum
Comprehensive product support.
Overview
Quantum medium-voltage indoor switchgear is no longer available to order; however, it is fully supported by our in-house After-Sales Service team with a full range of services in place. With innovation, progression, and commitment to excellence at the heart of our product portfolio, our service engineers are experts in supporting products throughout their lifecycle, including essential maintenance and repairs.
Resources
ENGINEERING FOCUS
Fit and forget technology
Award-winning, maintenance free magnetic actuator technology with the patented single coil magnetic actuator mechanism based on a solenoid plunger, held in the tripped or closed position by permanent magnets
Technical Specifications
| Property | Rating |
|---|---|
| Rated Normal Current | Up to 2000A |
| Rated Voltage | 12kV |
| Rated Frequency | 50Hz |
| Rated BIL | 75/95kV pk |
| Rated Power Frequency Withstand | 28/38kV 1 mim |
| Rated Short-Time Withstand Current | 25kA RMS for 3 secs |
| Rated Peak Making Current | 62.5kA |
| Internal Arc Compliance | 25kA for 1 sec |
| Rated Short Circuit Breaking Current | 25kA |
| Degree of Protection | IP4X |
| Single Capacitor Bank Breaking Current | 400A |
| Circuit Breaker Classification | E2, S2, C2 |
| Auxiliary Operating Supply | 110DC |
| Busbars Normal Current | Up to 2000A |
| Typical Weight | 500-700kg |
| Ambient Air Temperature | -5˚C to +40˚C |
| Relative Humidity | <95% |
| Altitude | <1000m |
| Mechanical Endurance | 10,000 operations |
Applications
Switchgear Services
From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.
CONTACT US
Speak to our team
BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

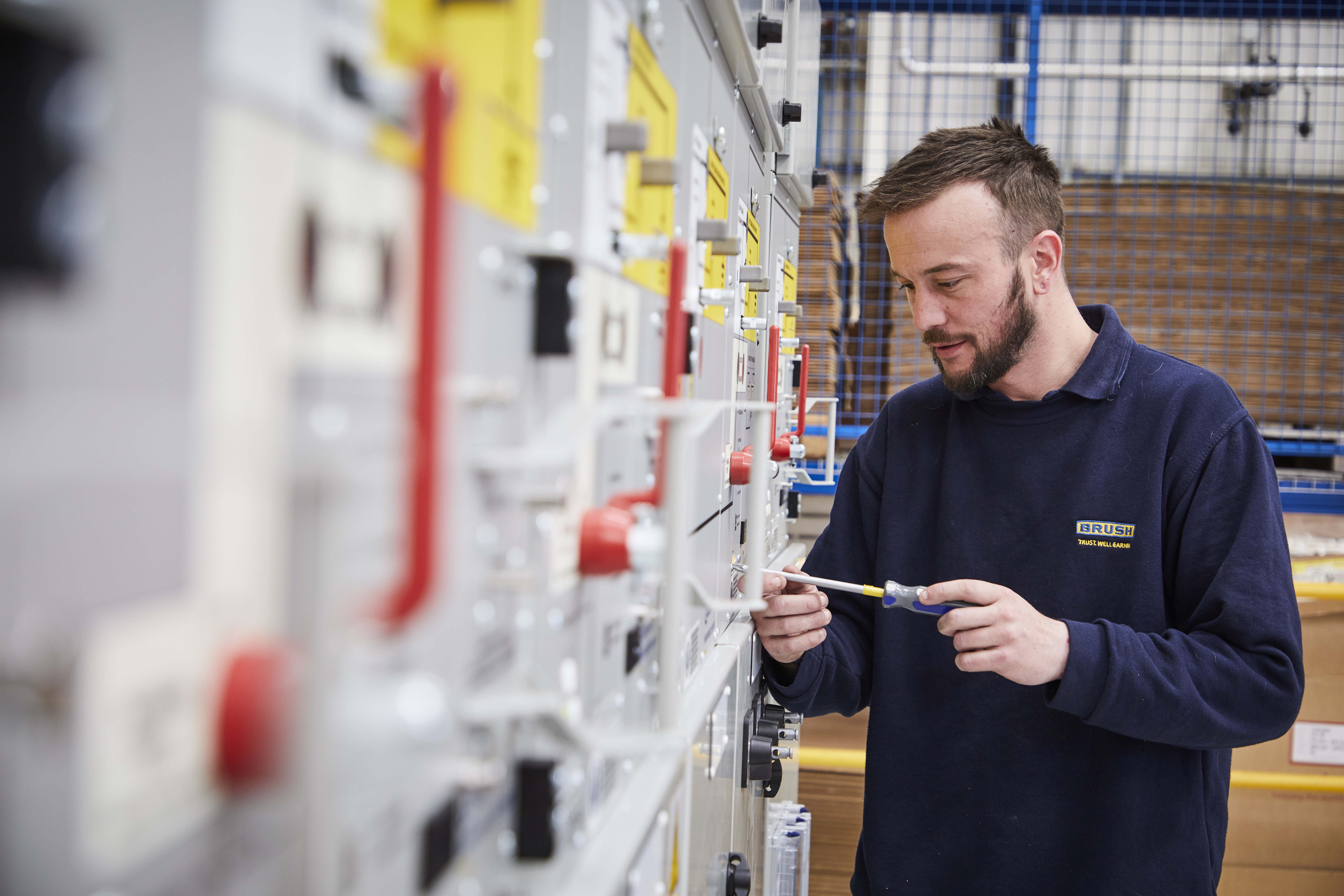

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.
